Concentrated Solar Power: Latest Technology Developments in 2024

Concentrated solar power (CSP) technology has seen significant advancements, including improved thermal energy storage, higher operating temperatures using supercritical CO2, and innovative heliostat designs for enhanced efficiency and cost-effectiveness.

The world is increasingly turning towards renewable energy sources, and concentrated solar power (CSP) technology is playing a crucial role. Let’s explore recent advancements making CSP more efficient and cost-effective.

What is Concentrated Solar Power?

Concentrated solar power (CSP) is a renewable energy technology that uses mirrors or lenses to concentrate a large area of sunlight onto a small area. Electrical power is produced when the concentrated light is converted to heat, which drives a heat engine (usually a steam turbine) connected to an electrical power generator.

CSP Technologies

CSP technology includes different approaches to concentrating solar energy. These include power towers, parabolic troughs, and dish Stirling systems.

• Power Towers: Use many large, flat mirrors called heliostats to focus sunlight onto a receiver at the top of a tall tower.

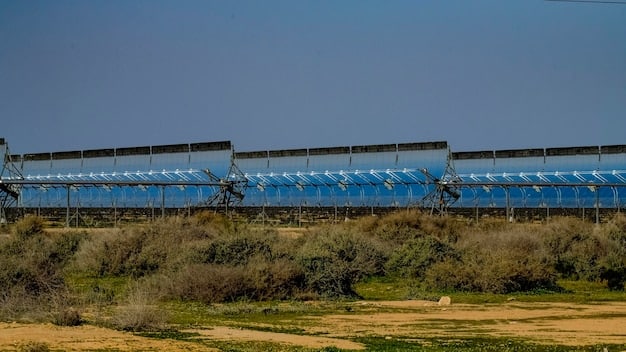

• Parabolic Troughs: Use curved, mirrored troughs to focus sunlight onto a receiver tube running along the center of the trough.
• Dish Stirling Systems: Use parabolic dish mirrors to focus sunlight onto a Stirling engine, which drives a generator.

Each of these CSP technologies has different advantages and suitability for various locations and power demands.

Improved Thermal Energy Storage

One of the most significant advancements in CSP technology is the enhancement of thermal energy storage (TES) systems. Improved TES allows CSP plants to store the heat collected during the day and generate electricity even when the sun isn’t shining.

Molten Salt Storage

Molten salt storage is a widely used TES technology in CSP plants. It involves using molten salts, typically a mixture of sodium and potassium nitrate, to store thermal energy. The salts are heated by the concentrated sunlight and then stored in insulated tanks. When electricity is needed, the hot salt is passed through a heat exchanger to produce steam, which drives a turbine.

Advanced Storage Materials

Researchers are also exploring alternative storage materials to improve the efficiency and reduce the costs of TES systems. These include:

• Phase Change Materials (PCMs): PCMs can store and release large amounts of heat at a constant temperature as they undergo a phase change (e.g., from solid to liquid).
• Solid-State Thermal Storage: This involves using solid materials, like ceramics or concrete, to store heat. These materials are relatively inexpensive and can withstand high temperatures.
• Thermochemical Energy Storage: This technology uses reversible chemical reactions to store and release heat. It has the potential for high energy density and long-term storage.

These advancements will allow CSP plants to provide reliable and dispatchable power, making them more competitive with traditional fossil fuel power plants.

Higher Operating Temperatures

Increasing the operating temperature of CSP plants can significantly improve their efficiency. Higher temperatures lead to more efficient heat-to-electricity conversion, reducing fuel consumption and emissions.

Supercritical CO2 Power Cycles

Supercritical carbon dioxide (sCO2) power cycles are emerging as a promising alternative to traditional steam Rankine cycles in CSP plants. sCO2 has unique thermodynamic properties that allow for higher efficiency and compact equipment.

Key benefits of sCO2 power cycles include:

• Higher Efficiency: sCO2 power cycles can achieve higher thermal efficiency compared to steam cycles, especially at high temperatures (500°C to 700°C).
• Compact Equipment: sCO2 systems are smaller and lighter than steam systems, reducing the capital costs of CSP plants.
• Dry Cooling: sCO2 power cycles can use dry cooling, which reduces water consumption in arid regions where CSP plants are typically located.

Researchers are actively developing and demonstrating sCO2 power cycles for CSP applications, with the goal of commercializing this technology in the coming years.

Advanced Materials

The development of advanced materials capable of withstanding high temperatures is crucial for increasing the operating temperature of CSP plants. These materials include:

• High-Temperature Alloys: Alloys based on nickel, cobalt, and iron are being developed and tested for use in high-temperature components like receivers and heat exchangers.
• Ceramic Composites: Ceramic matrix composites (CMCs) offer high strength and thermal stability at very high temperatures, making them suitable for use in advanced CSP systems.

These materials enable CSP plants to operate at higher temperatures, improving efficiency and reducing costs.

Innovative Heliostat Designs

Heliostats are a crucial component of CSP power tower plants. They are large, flat mirrors that track the sun and reflect sunlight onto a central receiver. Improving the design and performance of heliostats can significantly reduce the cost of CSP plants.

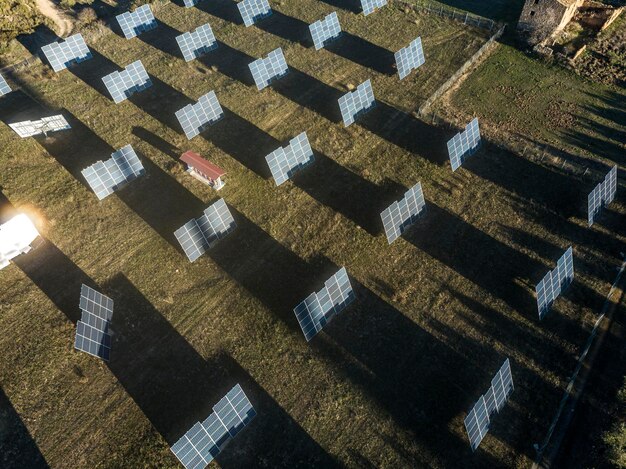

Smaller and Lighter Heliostats

Traditional heliostats are large and heavy, requiring substantial support structures and installation costs. Recent developments have focused on reducing the size and weight of heliostats while maintaining their reflective surface area.

These advancements include:

• Thin-Film Mirrors: Using thin-film mirrors instead of traditional glass mirrors can significantly reduce the weight of heliostats.
• Lightweight Support Structures: Developing lightweight support structures using composite materials or advanced alloys can reduce the overall cost of heliostats.

Smaller and lighter heliostats are easier to install and require less material, reducing the overall cost of CSP plants.

Automated Heliostat Control Systems

Accurate tracking of the sun is essential for maximizing the performance of heliostats. Automated control systems use sensors and algorithms to precisely position the heliostats and ensure that sunlight is accurately reflected onto the receiver.

Advanced Algorithms

Advanced algorithms can optimize the tracking of heliostats, taking into account factors like atmospheric conditions, shading, and receiver geometry. These algorithms can improve the overall efficiency of CSP plants by maximizing the amount of sunlight that is captured and directed onto the receiver.

Benefits of advanced algorithms include:

• Improved Accuracy: Advanced algorithms can compensate for errors in the tracking system, ensuring that sunlight is accurately focused on the receiver.
• Reduced Maintenance: Automated control systems can detect and diagnose problems with the heliostats, reducing the need for manual maintenance.

Automated control systems can significantly improve the performance and reliability of CSP plants.

Cost Reduction Strategies

One of the biggest challenges facing CSP technology is the need to reduce costs to compete with other renewable energy sources and traditional fossil fuel power plants. Several strategies are being employed to reduce the costs of CSP plants.

Modular Designs

Modular designs involve building CSP plants using standardized, prefabricated components that can be easily assembled on-site. This approach can reduce the construction time and costs of CSP plants.

Advantages of modular designs include:

• Faster Construction: Modular components can be manufactured off-site and quickly assembled, reducing the construction time of CSP plants.
• Lower Costs: Standardized components can be mass-produced, reducing the costs of CSP plants.

Modular designs can make CSP plants more affordable and competitive.

Economies of Scale

Building larger CSP plants can also help to reduce costs by taking advantage of economies of scale. Larger plants can spread fixed costs over a larger output, reducing the cost per kilowatt-hour of electricity generated.

Environmental Considerations

While CSP is a clean and renewable energy source, it is important to consider its potential environmental impacts. These impacts include land use, water consumption, and wildlife impacts.

Land Use

CSP plants require large areas of land to accommodate the mirrors or lenses used to concentrate sunlight. This can lead to habitat loss and fragmentation, particularly in arid regions where CSP plants are often located.

However, there are ways to minimize the land use impacts of CSP plants, such as:

• Siting Plants on Disturbed Lands: Locating CSP plants on previously disturbed lands, such as abandoned mines or industrial sites, can reduce the impact on natural habitats.
• Co-locating Plants with Other Land Uses: CSP plants can be co-located with other land uses, such as agriculture or grazing, to reduce the overall land footprint.

Water Consumption

CSP plants can consume significant amounts of water for cooling and steam generation. This can be a concern in arid regions where water resources are scarce.

However, there are ways to reduce the water consumption of CSP plants, such as:

• Dry Cooling: Using dry cooling systems that rely on air instead of water to cool the power plant can significantly reduce water consumption.
• Water Recycling: Recycling and reusing water within the plant can also reduce water consumption.

By carefully considering and mitigating these environmental impacts, CSP can be a sustainable and environmentally responsible energy source.

FAQ

Conclusion

Concentrated solar power (CSP) technology is evolving rapidly with advancements in thermal energy storage, the use of supercritical CO2, innovative heliostat designs, and cost-reduction strategies. These developments are making CSP a more competitive and sustainable energy solution. As technology continues to improve and costs decrease, CSP will likely play an increasingly important role in the transition to a cleaner energy future.
